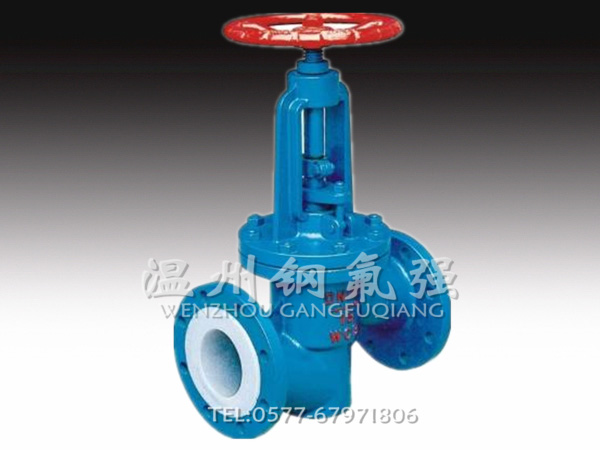

钢衬四氟截止阀

J41F46 J54F46 J44F46 J544F46 J45F46 J545F46

≤150℃

J641F46 J941F46 J644F46 J944F46 J645F46 J945F46

J41F3 J54F3 J44F3 J544F3 J45F3 J54F3

≤120℃

J641F3 J941F3 J644F3 J944F3 J645F3 J945F3

J41F2 J54F2 J44F2 J544F2 XJ45F2 J545F2

≤120℃

J641F2 J941F2 J644F2 J944F2 J645F2 J945F2

J41GXPP J54GXPP J44GXPP J544GXPP J45GXPP J545GXPP

≤100℃

J641GXPP J941GXPP J644GXPP J944GXPP J645GXPP J945GXPP

J41GXPO J54GXPO J44GXPO J544GXPO J45GXPO J545GXPO

≤110℃

J641GXPO J941GXPO J644GXPO J944GXPO J645GXPO J945GXPO

J41U J54U J44U J544U J45U J545U

≤100℃

J641U J941U J644U J944U J645U J954U

DN

mm

L

L1

D

D1

D2

f

b

z-φd

H1

H2

H3

H4

H5

H6

D0

W kg

PN1.0/PN1.6(MPa)

15

130

90

95

65

45

2

12/14

4-φ14

165

185

172

192

155

175

100

6.3

20

150

95

10

75

55

2

14/16

4-φ14

182

207

192

212

170

190

100

7.2

25

160

100

115

85

65

2

14/16

4-φ14

205

225

215

235

190

210

120

7.9

32

180

105

135/140

100

76

2

16/18

4-φ18

235

255

247

267

216

236

140

11.2

40

200

115

145/150

110

84

3

16/18

4-φ18

257

277

272

292

236

256

160

13

50

230

125

160/165

125

99

3

16/20

4-φ18

296

316

315

335

272

292

180

15.5

65

290

145

180/185

145

118

3

18/20

4-φ18

340

365

355

380

303

330

200

23

80

310

155

195/200

160

132

3

18/20

4-φ18

/8-φ18

405

450

422

460

359

399

240

37

100

350

175

215/225

180

155

3

20/22

8-φ18

488

538

516

566

423

468

300

43

125

400

200

245/250

210

184

3

22

8-φ18

548

598

573

623

477

525

300

56

150

480

225

280/285

240

210

3

22/24

8-φ23

637

687

670

720

556

600

360

76

200

600

275

335/340

295

265

3

22/24

8-φ23

/12-φ23

742

792

785

835

645

690

450

136

250

730

325

390/405

350/355

319

3

24/26

12-φ23

/12-φ26

864

915

915

965

745

795

500

225

300

850

375

440/460

400/410

368

3

26/28

12-φ23

/12-φ25

855

945

950

1040

775

865

500

325
